  • Ray Geophysical Seismograph Truck

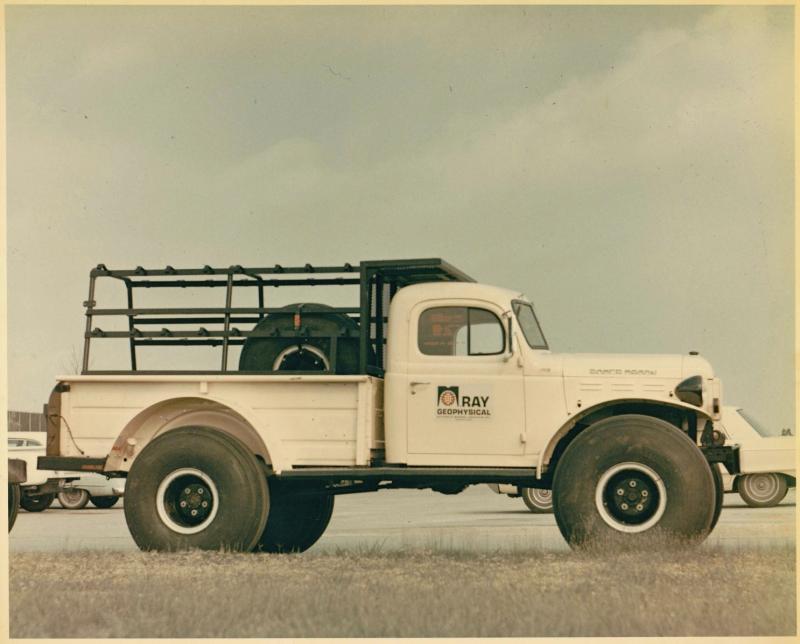

    Here is one you probably have not seen before. It is a mid to late 60's Dodge Power Wagon retrofitted for use in the oil exploration industry. Modifications to seismographic trucks included such enhancements as a heavy-duty rear step bumper, and conduit protected electrical wiring. Trucks with large sand tires (also referred to as DC-3 tires) were usually sent to Saudi Arabia. This truck appears to be new. An identical truck may be parked immediately behind the truck pictured. It is possible that this picture was taken from the Houston, Texas ship channel. From there it would have been loaded on a cargo ship and sent to its destination. Ray Geophysical has since been purchased by Halliburton. I am grateful to the Geophysical Society of Houston for sharing the picture.
    Attached Files

  • #2
    Neat picture!
    Power Wagon Advertiser monthly magazine, editor & publisher.

    Why is it that the inside of old truck cabs smell so good?


    • #3
      I love the tires. Remind me of the original Honda 3-wheeler tires back in 1970, before knobbys came on them.

      PW looka good in white. Don't see many that color.

      1975 W600


      • #4
        Filler neck

        Is the fuel filler behind that big fat tire?


        • #5
          The fuel filler is in the correct place of the bed wall. The aftermarket fender has been radiused such that the filler pipe is now inside the fender area.


          • #6
            There are a couple pictures of trucks outfitted like that in the French Dodge Book. But I don't think they showed any names on the doors. I'm going to have to dig that book out and look through it. Thanks for the photo!

            CLINT DIXON


            • #7
              I like the elevated steel frame over the bed that is integral with the headache rack. I presume this is for a tarp cover of the bed area, allowing people to be inside the bed during a sandstorm?
              If you pick up a starving dog and make him prosperous, he will not bite you. This is the principle difference between a dog and a man.
              Mark Twain

              1952 B-3 PW "Kirkwood"
              1953 M-37 (restoration project) with 4BT power
              1960 W500 Power Giant (future project)

              S.A.R. member (


              • #8
                Steel frame

                I would guess that the steel frame is for carrying geophones and cable. A geophysical crew would lay out the cable to record vibrations from either explosives or thumper trucks that generate waves through the ground. The lines of data recorded then give an indication of oil bearing formations.


                • #9
                  Great pic, thanks for posting!


                  • #10
                    Thanks for Sharing!
                    Note how much they enlarged the rear fenders.
                    Enough to put the filler neck between the tire and the fender.
                    Those tires are way larger than the picture suggest!
                    WDX & Misc. Pics.
                    "47" Dodge WDX WW
                    "52" Dodge M-37 WW
                    "54" Willys M38A1
                    "65" Kaiser M35A1 WW
                    "77" Chev. K-30 400T,205,4.56 "No-Spin"
                    "84" Chev, K-30 Cummins 6-BTA 400,205,3.73Locker
                    "86" Chev, M1028A2 (K30) 6.2,400.205,4.56 Locker
                    "99" Dodge Durango "Limited Slip"
                    "99" Dodge 3500 CTD 4x4"No-Spin"


                    • #11
                      DC3 tires

                      a common mod in Alaska and in desert areas back in the day
